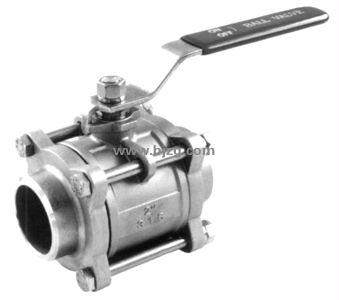

3-pc Butt Weld Ball Valve(
 Zoom |
|
Details
| Products specification: | ||||||||||||
| Model:BBW-3F(Full bore 1000PSI WOG,150LB,300LB,600LB,800LB,1500LB,2500LB,PN10,PN16,PN25,PN40) | ||||||||||||
| 1.Nominal pressure:1000PSI WOG(6.4MPa) | ||||||||||||
| 2.Applicable tempture:-20～232℃ | ||||||||||||
| 3.Applicable medium:Water,oil,gas and certain corrosive liquids | ||||||||||||
| 4.Threaded types:NPT.BSPT.BSP.DIN259/2999 | ||||||||||||
| Chief property and specification | ||||||||||||
| Pressure grade | Nominal pressure(MPa) | Pound grade(Class) | ||||||||||
| 1.6 | 2.5 | 4 | 6.4 | 10 | 150 | 300 | 400 | 600 | ||||
| Test pressure(MPa) | Housing test | 2.4 | 3.75 | 6 | 9.6 | 15 | 3 | 7.5 | 10.2 | 16.5 | ||
| Sealing test | 1.76 | 2.75 | 4.4 | 7.04 | 11 | 2.2 | 5.5 | 7.48 | 12.1 | |||
| Hermetic sealing test | 0.6-0.7 | |||||||||||
| Suitable medium | Body material | |||||||||||
| WCB | CF8 | CF8M | ||||||||||
| Water,steam,oil,product,liquefied | Corrosive media such as nitric acid | Corrosive media such as acetic acid | ||||||||||
| Special medium | Media of natural gas including sulfureted hydrogen,coal and aluminum power in conveying system of steel and non-ferrous metal smelting industry,and paper pulp,others with granule and fiber in the conveying system of papermaking industry. | |||||||||||
